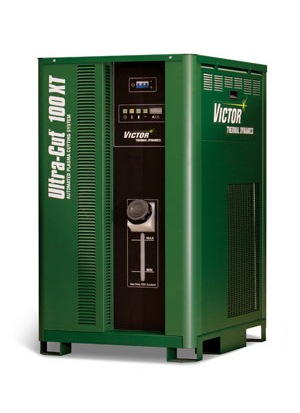

Ultra-Cut 100 XT




Specifications
Rated Output (Amps) 100 A
Output Range (Amps) 5-100 A
Output (Volts) 180 V
Input Volts
(Volts, Phase, Hertz)
380 V, 3 ph, 50-60 Hz,
400 V, 3 ph, 50-60 Hz,
480 V, 3 ph, 50-60 Hz
Input Amps
(Amps, Volts)
33 A @ 380 V
31 A @ 400 V
26 A @ 480 V
Duty Cycle (@ 104ºF / 40º C) 100% (20 kW)
Max OCV 425 V
Plasma Gas Air, O2, Ar-H2, N2 @ 120 psi
(8.3 bar) and Ar for marking with DFC 3000
Shield Gas Air, N2, O2 @ 120 psi (8.3 bar),
H20 @ 10 GPH (0.6 l/min)
Power Supply Weight 410 lbs (186 kg)
Dimensions 48.0" x 27.5" x 40.6" (1219 mm x 698 mm x 1031 mm)
Certifications CSA, CE, CCC
