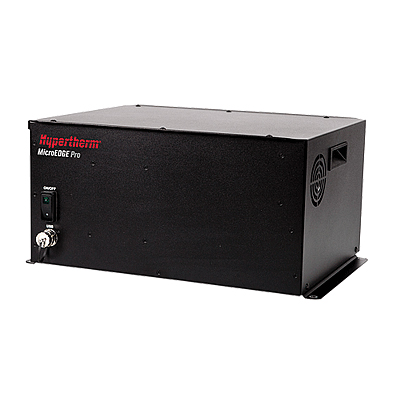

| Hypertherm MicroEDGE Pro |
|
|
|
| |
|
|
The MicroEDGE Pro CNC brings Hypertherm’s latest hardware and Phoenix software technology to a product that is customizable for a wide variety of applications. Designed for reliability and ease of use, the MicroEDGE Pro improves cut quality, productivity and profitability by delivering Hypertherm’s cutting process expertise directly to your factory. It is as if you have your best operator on every shift.
The MicroEDGE Pro CNC is the most versatile CNC offering from Hypertherm. The MicroEDGE Pro control package provides a unique combination of configurations, expandable features, and common software with the other Hypertherm CNCs. Available in both analog and SERCOS versions, this scalable CNC offers the OEM the ability to standardize on a control solution without compromising application range. |
|
| |
|
|
 |
Using the CutPro® Wizard, even new operators can be ready to cut production parts in less than five minutes. |
|
CNC Software, cutting optimization tips, consumable change instructions, and Hypertherm plasma, CNC and THC manuals are available in multiple (14*) languages at the touch of a button. |
|
Integrated communications with plasma and torch height control systems deliver automated and expert control using installed factory or custom cut charts. |
|
| |
|
|
|
Flexible CNC design approach enables cutting machine design options to meet the needs of today’s complex systems. |
|
Cutting machine user manuals can be added for easy access to critical information. |
|
Configurable Watch Windows enable on-screen real-time monitoring of key performance parameters while cutting. |
|
| |
|
|
|
Engineered and tested using the same proven design process as the EDGE Pro CNC for superior reliability and consistent operation in harsh cutting environments. |
|
Air cooled with no dust ingress to reduce stress on components. |
|
Two-year warranty. |
|
| |
|
|
| Application Software |
Phoenix shape cutting control software |
| Operating system |
Windows® XPe |
| Display and keyboard |
Customer supplied - touchscreen and standard LCD supported |
| Communication ports |
Ethernet LAN, Hypernet, USB and RS-232/422/485 isolated serial |
| Dimensions |
239 mm (9.4") high x 465 mm (18.3") wide x 335 mm (13.2") deep |
| Temperature range |
-10° C to 40° C ambient (14° F to 104° F ambient) |
| Warranty |
Two -year warranty |
| Regulatory compliance |
CE, CSA, GOST-R |
| Operating voltage and frequency |
100 – 240 V, 50/60 Hz |
| Software utilities |
Part Program Support (PPS), Remote Help, networking, Autogas support, DXF import, and simple shape nesting |
|
| |
|
