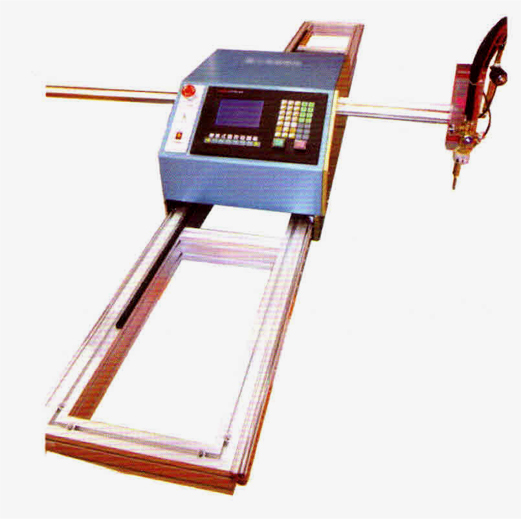

NAM Series Portable Cutting Machine



Description
NAM I series and NAM II series portable CNC cutting machines can cut complex shapes using flame and plasma cutting processes. These machines are economical, compact and lightweight, making them very portable and easy for an operator to carry this machine from job to job, for both indoor and outdoor cutting.

NAM machines are extremely versatile and suitable for factories of all sizes, with applications in automotive, shipbuilding, construction machinery, fabrication and other industries. Nam I series is equipped with a flame-cutting torch and is suitable for cutting mild steel, and NAM II series is equipped with an air plasma system which can also cut stainless steel and other non-ferrous metals.

The machine' s CNC has an intuitive LCD display with graphical menu driven operation. NC programs in EIA format can be loaded for cutting via USB port or RS-232 download. FastCAM programming software is offered with NAM machines to allow the user to create effective cutting programs that maximize productivity and plate utilization. All the functionality you expect from a large scale CNC cutting machine, in a smaller portable size...with a very affordable price ! for cutting via USB port or RS-232 download. All the functionality you expect from a large scale CNC cutting machine, in a smaller portable size... and with a very affordable price !

Specifications
Type Parameter
WMT Small CNC Cutting Machine
Beam width 1700mm
Track Length 2500mm standard, optional longer lengths available
Effective Cutting Width 1200mm
Effective Cutting Length 500 mm less than track length
Cutting Mode Flame standard, Optional: Air Plasma
Cutting thickness Flame: 6-10Cnm, Plasma: according to plasma system
Flame Cutting gas Oxygen + Acetylene, Oxygen + Propane
NC System Start Microstep CNC
Maximum speed 6000mm/min
Power Standard 220v 50HZ / Optional: 110 VAC 60 Hz
