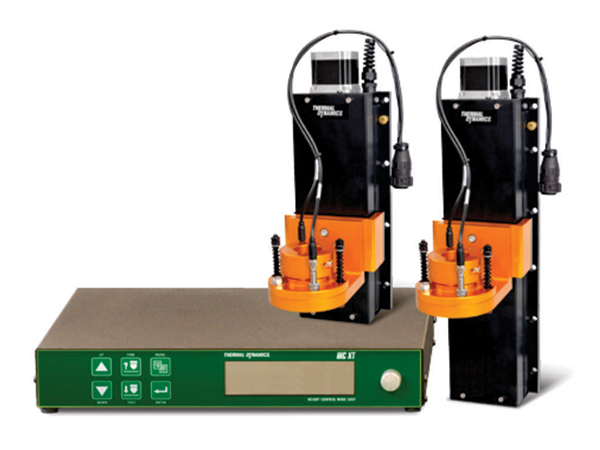

| Thermal Dynamics iHC XT Height Control |
|
|
|
| |
| Process Database Built In. |
|
|
| What could be easier? Simply choose the material, thickness and amps you are using to cut your next work – the intelligent iHC XT takes care of the rest. All the torch height related parameters are set automatically. The iHC XT will even give proper kerf and speed value settings for the CNC. This minimizes the work load and potential operator errors, without sacrificing the advanced features of the height control. All ideal settings for Ignition Height, Pierce Height & Time, Cut Height, Arc Voltage and other key parameters are preset. |
|
| |
|
|
 |
Rotate the dial to pick up the right process – or when cutting, to fine-tune the cut height! |
|
| |
| Precise Arc Voltage Monitoring for Ultimate Cut Quality |
|
|
|
50 - 300V, settable in 0.1V increments, controlled by 0.02V measuring resolution. |
|
| |
| Voltage Sampling to Adapt for Consumable Wear |
|
|
|
Keeps the nozzle distance from plate correct throughout the entire life time of the electrode. |
|
| |
| Two Ways to Sense the Plate |
|
|
|
Ohmic Contact |
|
Collision sense (adjustable sensitivity) virtually eliminates plate sensing problems caused by dirty nozzle/plate, preventing electric contact.
If Ohmic contact does not work, the sensors on the iHolder take care of sensing the plate. |
|
| |
|
|
| Maximum Speed |
6000 mm/min (240 IPM) @ 1200 rpm |
| Voltage Control Accuracy |
± 1V |
| Arc Voltage Range |
50-300V |
| External Power Supply Requirement |
24VDC/5A (±10%) |
| Size |
400 mm W x 70 mm H x 290 mm D |
| Weight |
3 kg |
| Warranty |
1 year |
|
| |
