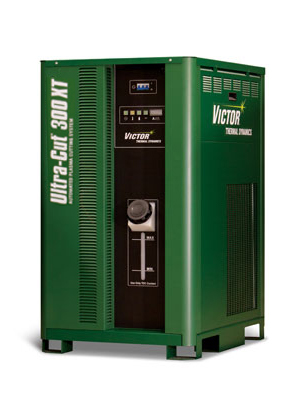

| Ultra-Cut 300 XT |
|
|
|
| |
|
| |
|
|
| Rated Output (Amps) |
300 A |
| Output Range (Amps) |
5-300 A |
| Output (Volts) |
180 V |
Input Volts
(Volts, Phase, Hertz) |
380 V, 3 ph, 50-60 Hz,
400 V, 3 ph, 50-60 Hz,
480 V, 3 ph, 50-60 Hz |
Input Amps
(Amps, Volts) |
97 A @ 380 V
93 A @ 400 V
77 A @ 480 V |
| Duty Cycle (@ 104ºF / 40º C) |
100% (60 kW) |
| Max OCV |
425 V |
| Plasma Gas |
Air, O2, Ar-H2, N2 @ 120 psi
(8.3 bar) and Ar for marking with DFC 3000 |
| Shield Gas |
Air, N2, O2 @ 120 psi (8.3 bar),
H20 @ 10 GPH (0.6 l/min) |
| Power Supply Weight |
537 lbs (244 kg) |
| Dimensions |
48.0" x 27.5" x 40.6" (1219 mm x 698 mm x 1031 mm) |
| Certifications |
CSA, CE, CCC |
|
| |
|
